POYNTING ANTENNAS
POYNTING offers a range of antennas that are designed specifically for marine and coastal applications, where performance, quality, styling, and weather protection are critical. This range of antennas is aimed at the luxury yacht market and can also be used in other applications with harsh environments such as harbour buildings, smaller boats, buoys, etc.
The marine antenna range is designed within POYNTING’s customary requirements of high performance, wide bandwidth, and exceptional quality. The range covers LTE and 5G reception at sea, as well as antennas to provide dual-band Wi-Fi distribution at sea.
WAVEHUNTER™
X-POLORISED, HIGH GAIN, MULTI-DIRECTIONAL 5G/LTE, 24X24 MULTI MIMO ANTENNA ARRAY
The WaveHunter enclosures are designed to fit a variety of router and networking modules, transforming the antenna enclosure into a Customer Premises Equipment (CPE) – just add your own LTE/5G routers and networking equipment. The WaveHunter enclosure can accommodate routers up to the size of 250 x 150 x 50 mm.
For: • Leisure yachts and catamarans • Fishing vessels • Workboats and patrol boats • Passenger ferries • Offshore service vessels (OSVs) Vessel Tonnage10 to 500 gross ton (GT). Vessel length 10 to 50 meters Reach Range • 4G/5G Cellular: Up to 20–40 km offshore • Wi-Fi: Typically 1–5 km
.png)
RIPPLE SERIES
X-POLARISED, OMNI-DIRECTIONAL, 5G/LTE, 8X8/16×16
MULTI MIMO ANTENNA ARRAY
RIPPLE is an omni-directional antenna system tailored for the maritime industry, offering ultra-wideband coverage from 617 to 7200 MHz for reliable cellular connectivity in remote areas. It supports up to 8x8 or 16x16 MIMO with vertically and horizontally polarized antennas, ensuring optimal performance and radiation patterns.
For: • Small leisure boats and speedboats • Sailing yachts • Fishing boats • Houseboats and pontoons • Inland waterway vessels Vessel Tonnage: under 100 gross ton (GT). Vessel length: 5 to 20 meters. Reach Range • 4G/5G Cellular: Up to 10–20 km offshore • Wi-Fi: Typically 500 meters to 2 km
SWIRL RANGE
X-Polarised, Omni-Directional 5G/LTE, Multi MIMO Antenna Array
SWIRL-8 is a high-performance maritime antenna system featuring 8 cross-polarised cellular antennas (617–6000 MHz) for robust 5G connectivity, 4 dual-band Wi-Fi antennas, and a dual-band GNSS antenna for precise navigation. Built to endure extreme marine conditions, it holds IK08 and IP69K durability ratings.
For: • Luxury yachts and cruisers • Sailing yachts • Passenger ferries • Coastal patrol boats • Commercial vessels with aesthetic or compact antenna requirements Vessel Tonnage: 20 to 300 gross ton (GT) Vessel length: 10 to 40 meters Reach Range • 4G/5G Cellular: Up to 15–30 km offshore • Wi-Fi: Typically 1–3 km
NARWHAL SERIES (OMNI-900’S)
OMNI-DIRECTIONAL, MARINE & COASTAL 5G/LTE ANTENNA
The Narwhal series was specifically designed for marine & coastal applications and offers a variety of configurations with 5G/LTE omni-directional antennas from 2×2 to 4×4 MIMO. The antennas feature ultra-wideband coverage from 617 to 4200 MHz, with gains varying from 3dBi to 8dBi and near perfect omni-directional radiation patterns for optimal performance.
For: • Commercial fishing vessels • Tugboats and workboats • Passenger ferries • Offshore support vessels • Large leisure yachts Vessel Tonnage: 50 to 1000 gross ton (GT) Vessel length: 20 to 60 meters Reach Range • 4G/5G Cellular: Up to 30–50 km offshore • Wi-Fi: Typically 1–5 km
OMNI-414 & OMNI-402
OMNI-DIRECTIONAL, MARINE & COASTAL 4×4/2×2 MIMO ANTENNA
The OMNI-414 and OMNI-402 is an ultra-wideband antenna, with 4×4 (OMNI-414) and 2×2 (Omni-402) MIMO capability for optimal performance in marine & coastal applications. The antenna operates from 617 to 3800 MHz / 410 to 3800 MHz (Omni-402), covering all contemporary LTE/5G bands with excellent omni-directional radiation pattern for improved performance.
OMNI-414 and OMNI-402: For: • Leisure boats and yachts • Fishing vessels • Patrol and rescue boats • Small to mid-sized commercial vessels • Houseboats and pontoons OMNI-414: Vessel Tonnage:10 to 300 gross ton (GT) Vessel length: 8 to 30 meters OMNI-402: Vessel Tonnage:20 to 500 gross ton (GT). Vessel length: 10 to 40 meters. Reach Range OMNI-414: • 4G/5G Cellular: Up to 15–25 km offshore • Wi-Fi: Typically 1–3 km OMNI-402: • 4G/5G Cellular: Up to 20–30 km offshore Wi-Fi: Typically 1–4 km
OMNI-493
OMNI-DIRECTIONAL, MARINE & COASTAL 5G/LTE ANTENNA
The OMNI-493 is an ultra-wideband, high performance, omni-directional antenna that covers the contemporary 4G/LTE and future 5G operating frequencies with excellently balanced gain across all frequencies.
For: • Offshore fishing vessels • Large leisure yachts • Commercial cargo and supply vessels • Research and survey vessels • Coastal ferries and patrol boats Vessel Tonnage: 100 to 1000 gross ton (GT). Vessel length: 20 to 60 meters. Reach Range • 4G/5G Cellular: 40–50 km offshore • Wi-Fi: Typically 2–5 km
EPNT-4
X-POLARISED, OMNI-DIRECTIONAL, 5G/LTE & WI-FI CPE
The EPNT-4 is POYNTING’s omni-directional CPE antenna system, combining 4×4 5G/LTE MIMO, 2×2 Wi-Fi MIMO, and GPS in one unit. It supports wideband 5G/LTE from 617–4200 MHz and Wi-Fi from 2.4 to 7.2 GHz, offering peak gains of 3–5 dBi. Designed for enhanced connectivity, it supports features like carrier aggregation for improved 5G performance.
For: • Luxury yachts and cruisers • Research and survey vessels • Offshore support vessels • Commercial fishing boats • Mobile command boats and emergency response vessels Vessel Tonnage: 50 to 500 gross ton (GT). Vessel length: 15 to 40 meters. Reach Range • 4G/5G Cellular: 30–40 km offshore • Wi-Fi: Typically 1–3 km

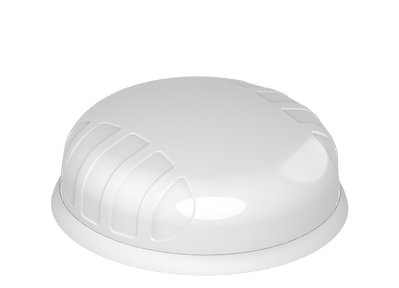

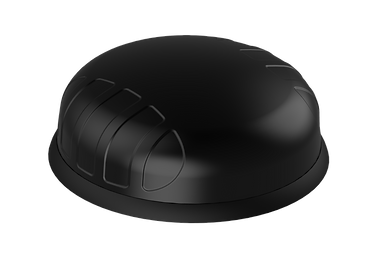

PUCK-SERIES
OMNI-DIRECTIONAL ANTENNA
POYNTING’s PUCK series offers a small profile antenna for use in the commercial & industrial markets. The PUCK series offers a variety of options for MIMO LTE/5G (617 to 4200 MHz), MIMO Wi-Fi (dual band 2.4 GHz & 5 to 6 GHz) and GPS/GLONASS within the same enclosure, while keeping implementation as simple as possible with its many mounting options.
For: • Small leisure boats and speedboats • Sailing yachts • Houseboats and pontoons • Inland waterway vessels • Utility and patrol boats Vessel Tonnage: under 100 gross ton (GT). Vessel length: 5 to 20 meters. Reach Range • 4G/5G Cellular: 5–15 km offshore • Wi-Fi: Typically: 500 meters to 2 km
