POYNTING PUCK-5-V2
5-in-1 Transportation & IoT/M2M Antenna
617 - 6000 MHz; 2X2 5G (MIMO); 2400 - 7200 MHz, 2X2 Wi-Fi (MIMO); GPS/GLONASS
Key Features
•5-in-1 5G high performance multi frequency antenna
•Antenna supports Private 5G/5G/4G/3G/2G/Wi-Fi-6e/ Wi-Fi-7/LoRa/Bluetooth
•5G (2x2 MIMO), Dual-band Wi-Fi (2x2 MIMO), GPS/GLONASS
•Ultra-wideband coverage from 617 – 6000 MHz for cellular
•Robust, vandal resistant and waterproof (IP 69K)
•Ideal for transportation, marine and IoT/M2M use Ultra-versatile mounting options for easy installation
Download:
Technical Specification
User Guide
|
Specs |
|
|
Gain (5 in 1) |
6.5dBi (LTE); 6.5dBi (Wi-Fi) 21dBi (GPS); |
|
MIMO |
2 X 2 |
|
Cellular Freq. Range |
617-6000MHz |
|
Polarized |
Linear Polarized |
|
Directionality |
Omni-directional |
|
LTE Ports |
2 |
|
Wi-Fi Ports |
2 |
|
GNSS/GPS Ports |
1 |
|
Mounting Type |

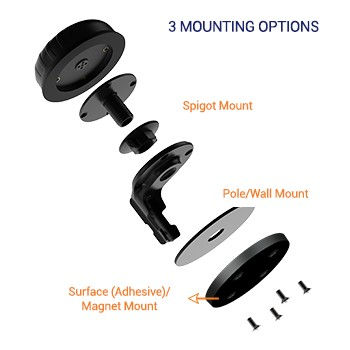

Pole Mount, Magnetic Mount, Spigot Mount, Surface/Desk Mount, Wall Mount |
|
Color |
Black (A-PUCK-0005-V2-01); White (A-PUCK-0005-V2-01-W) |
|
Industry (Application) |
Commercial & Industrial Antennas, Farming & Agricultural Antennas, Marine & Coastal antennas, Transportation & Mobility |
